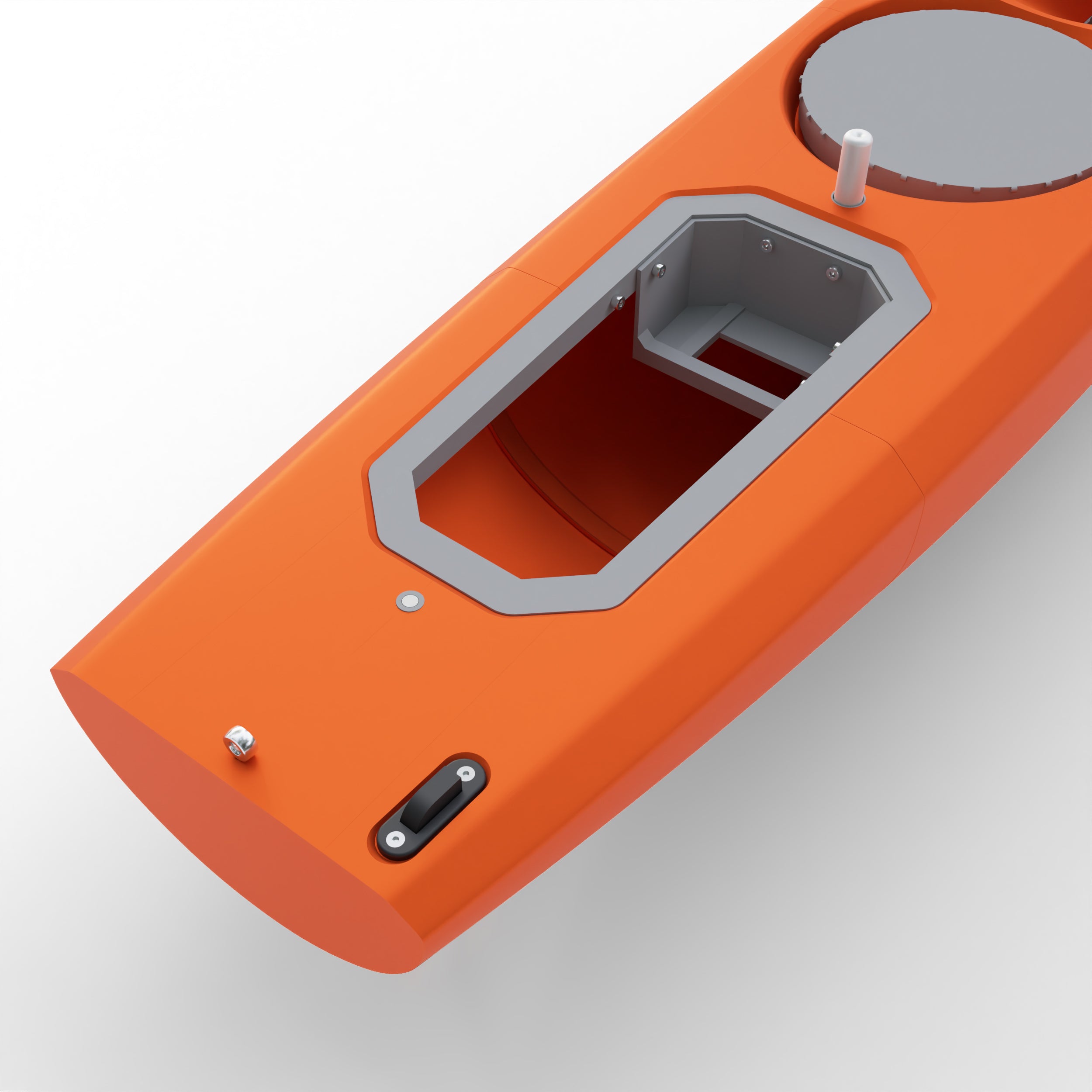

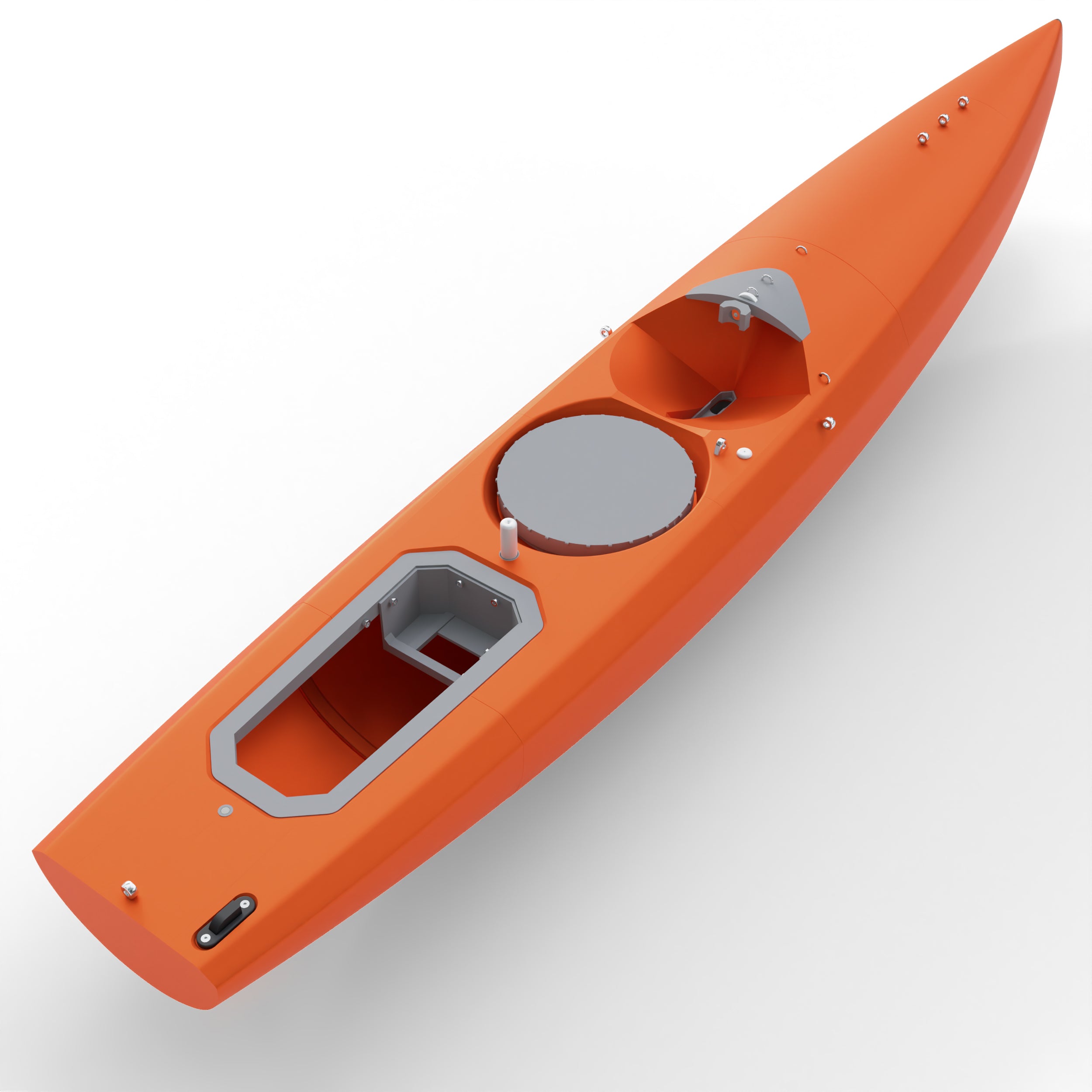

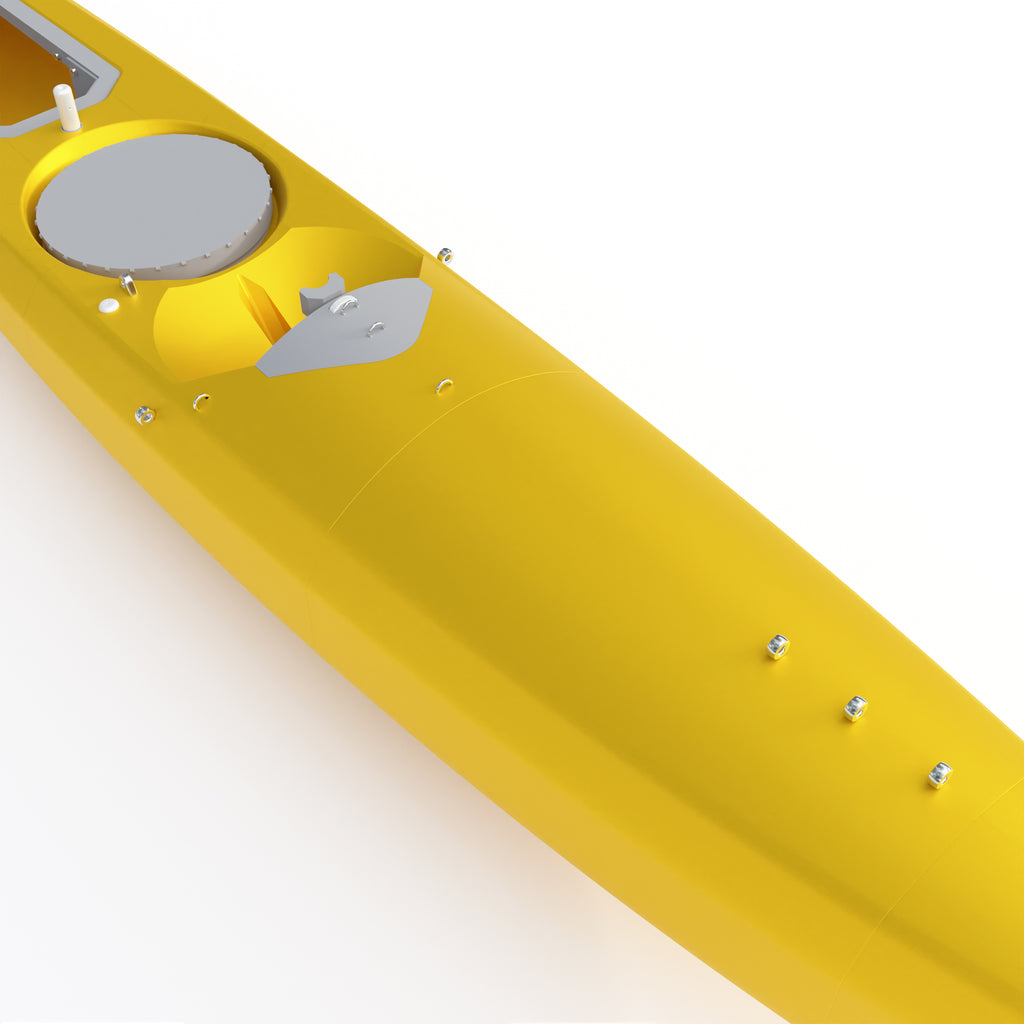

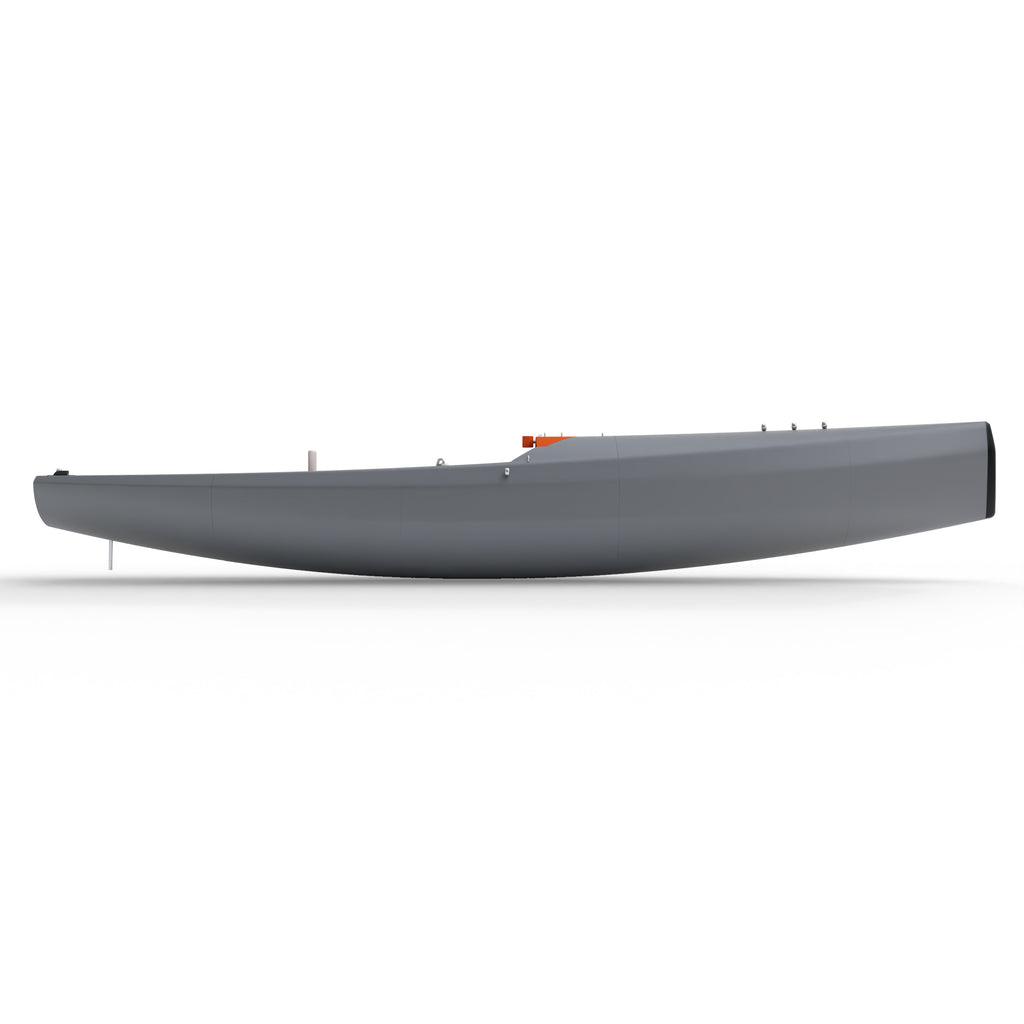

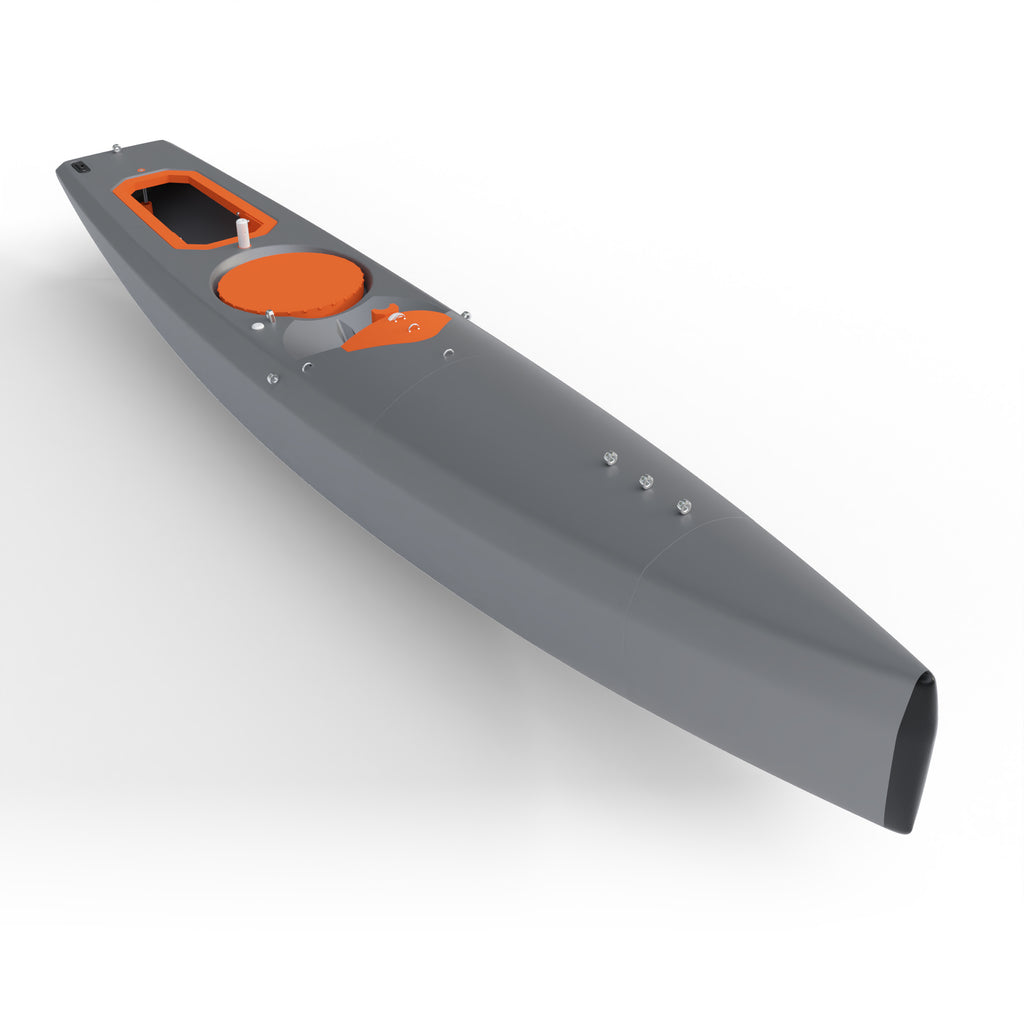

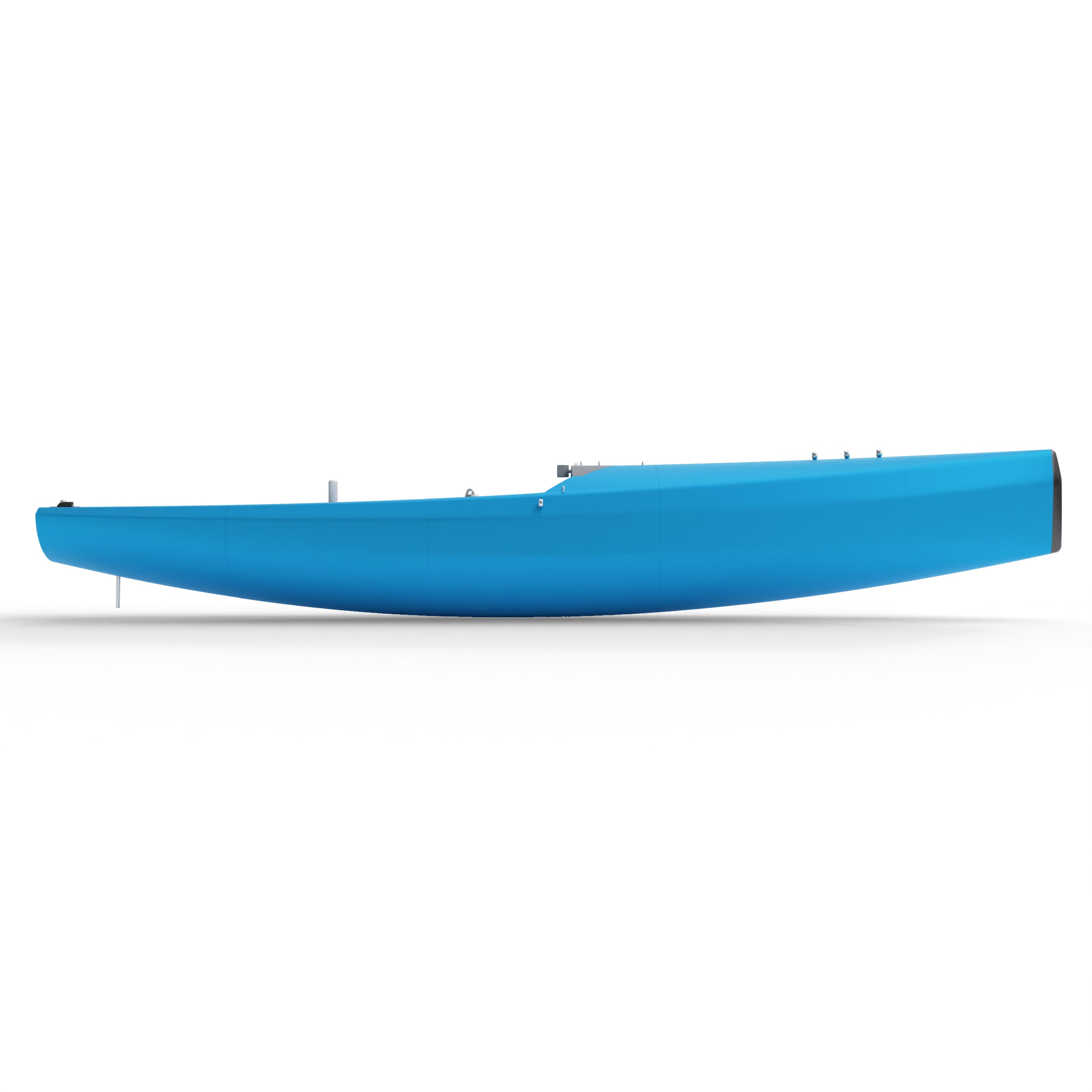

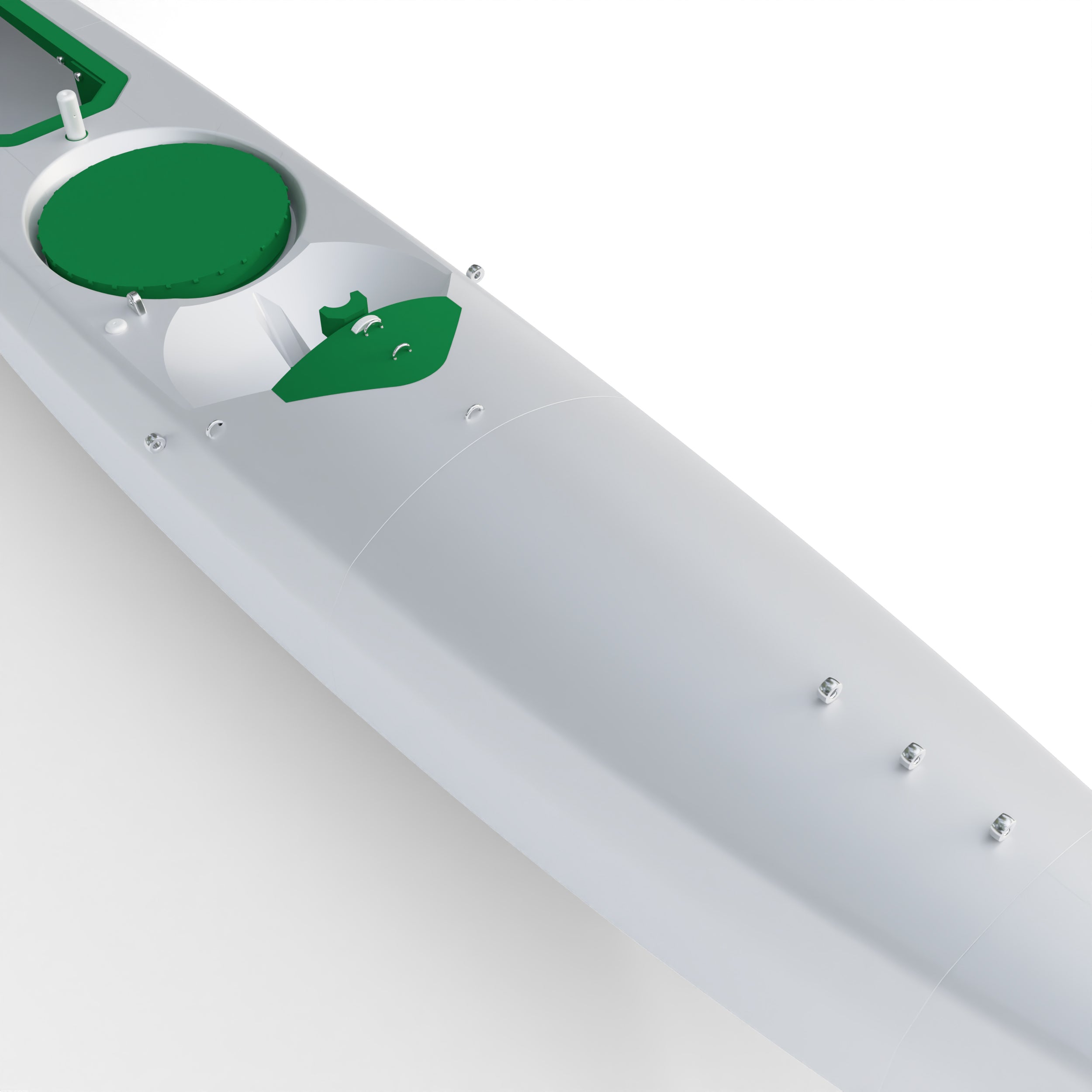

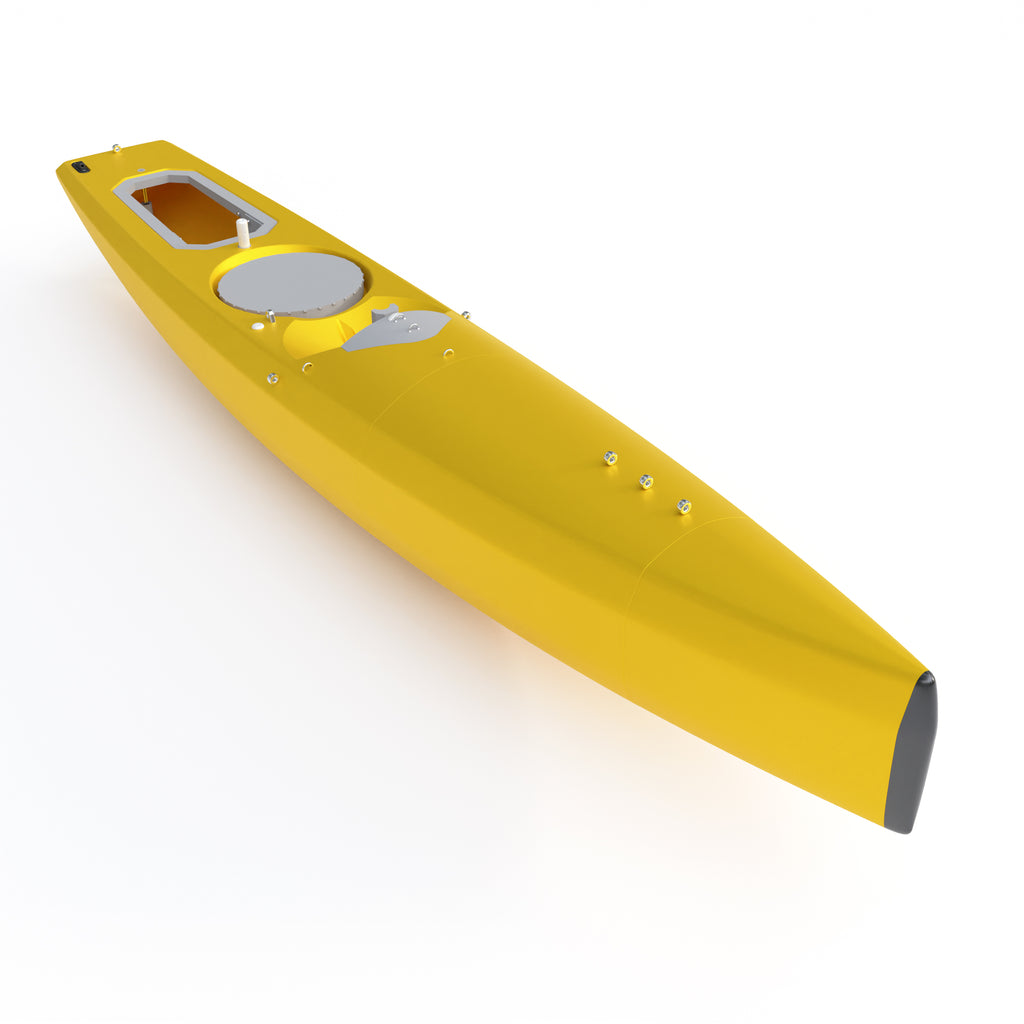

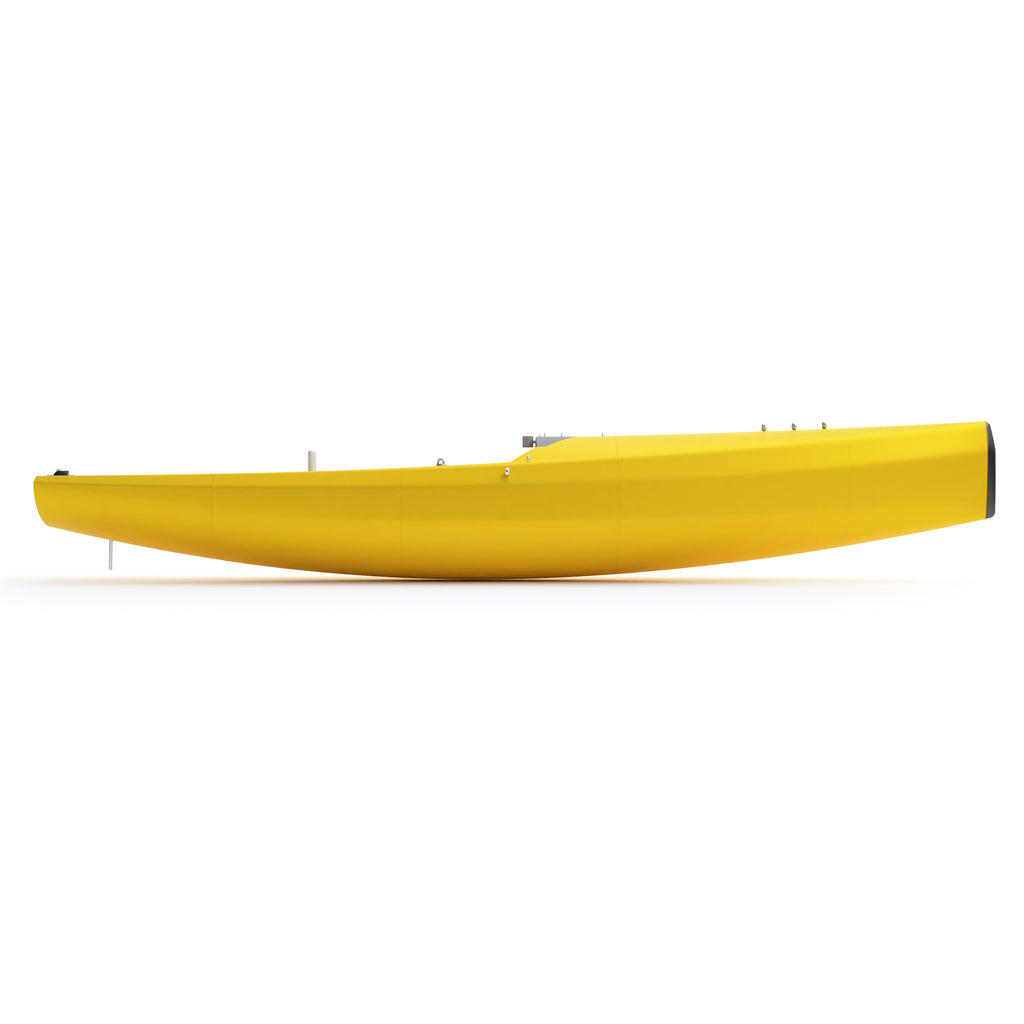

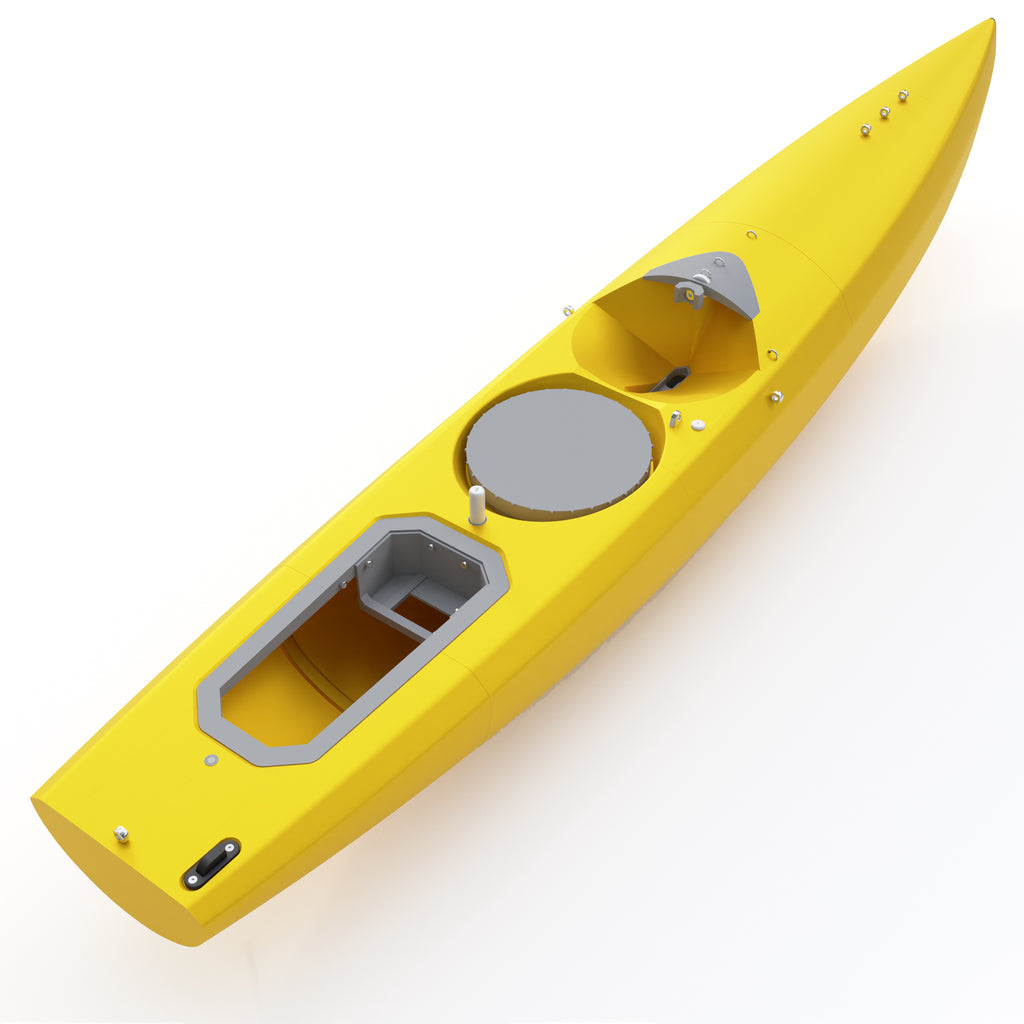

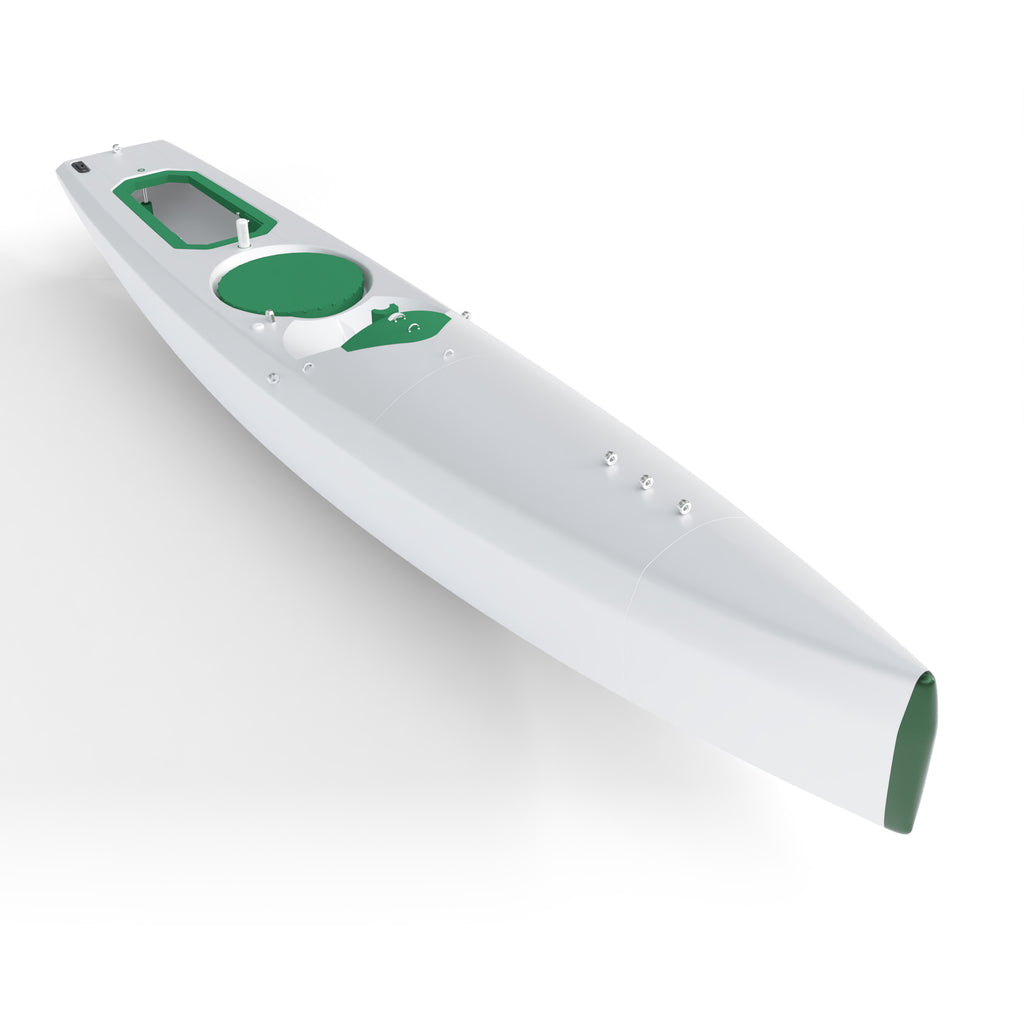

IOM - Alioth V4

Build kits for an Alioth V4 IOM hull. Available in two options:

The Full Hull Build Kit includes all of the parts and adhesives necessary to build a complete hull, except the bow bumper which should be selected and ordered separately.

The Hull Parts Only version includes all of the printed parts, but will require you to source all of the fittings and adhesives to complete the hull.

Full build instructions will shortly be available.

Select the desired hull color from the listed options. Internal components and details can be printed in PLA of any color. Use the text box to customize as desired. Available colors can be viewed here. If no color is specified these parts will be printed in the same color as the hull.

About the Alioth

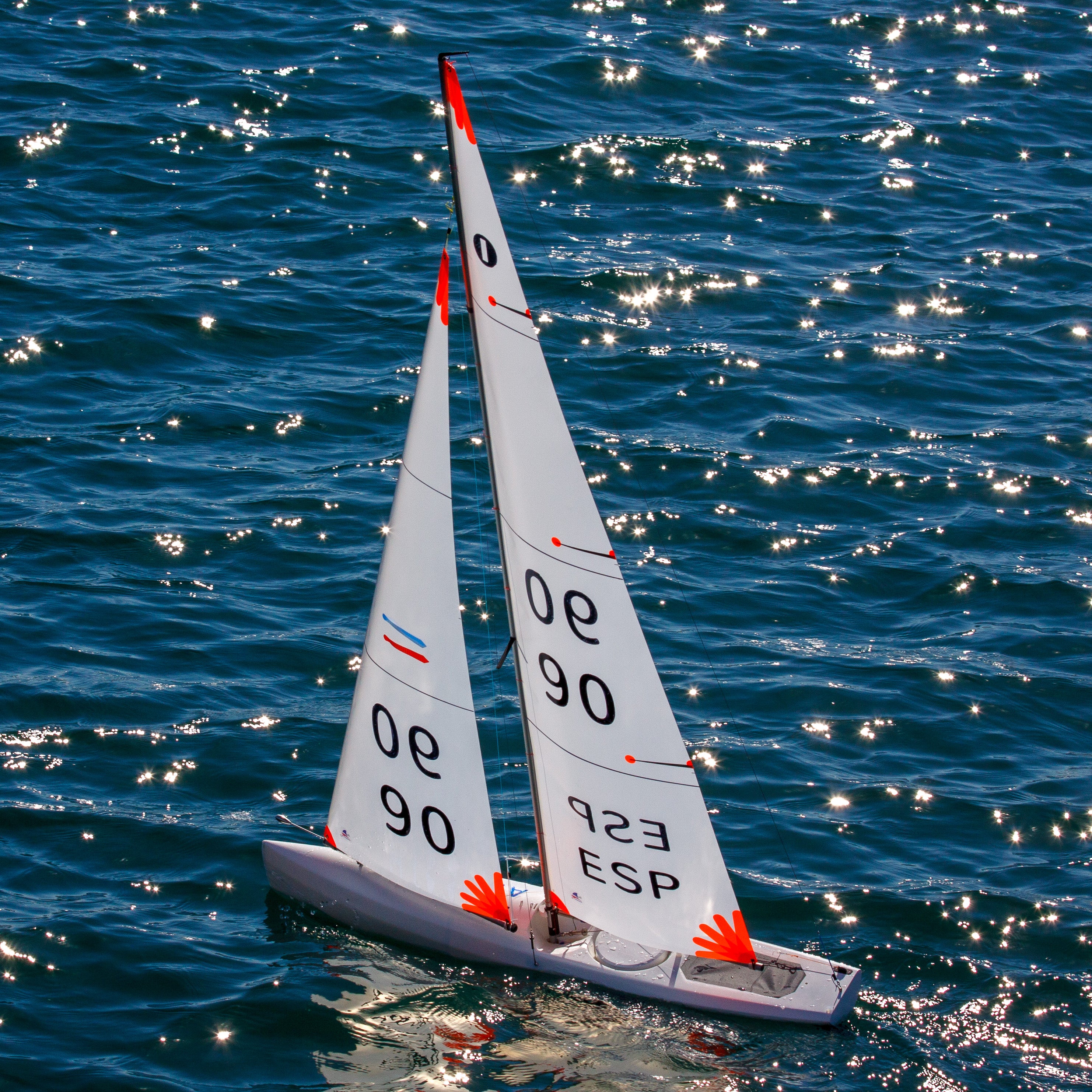

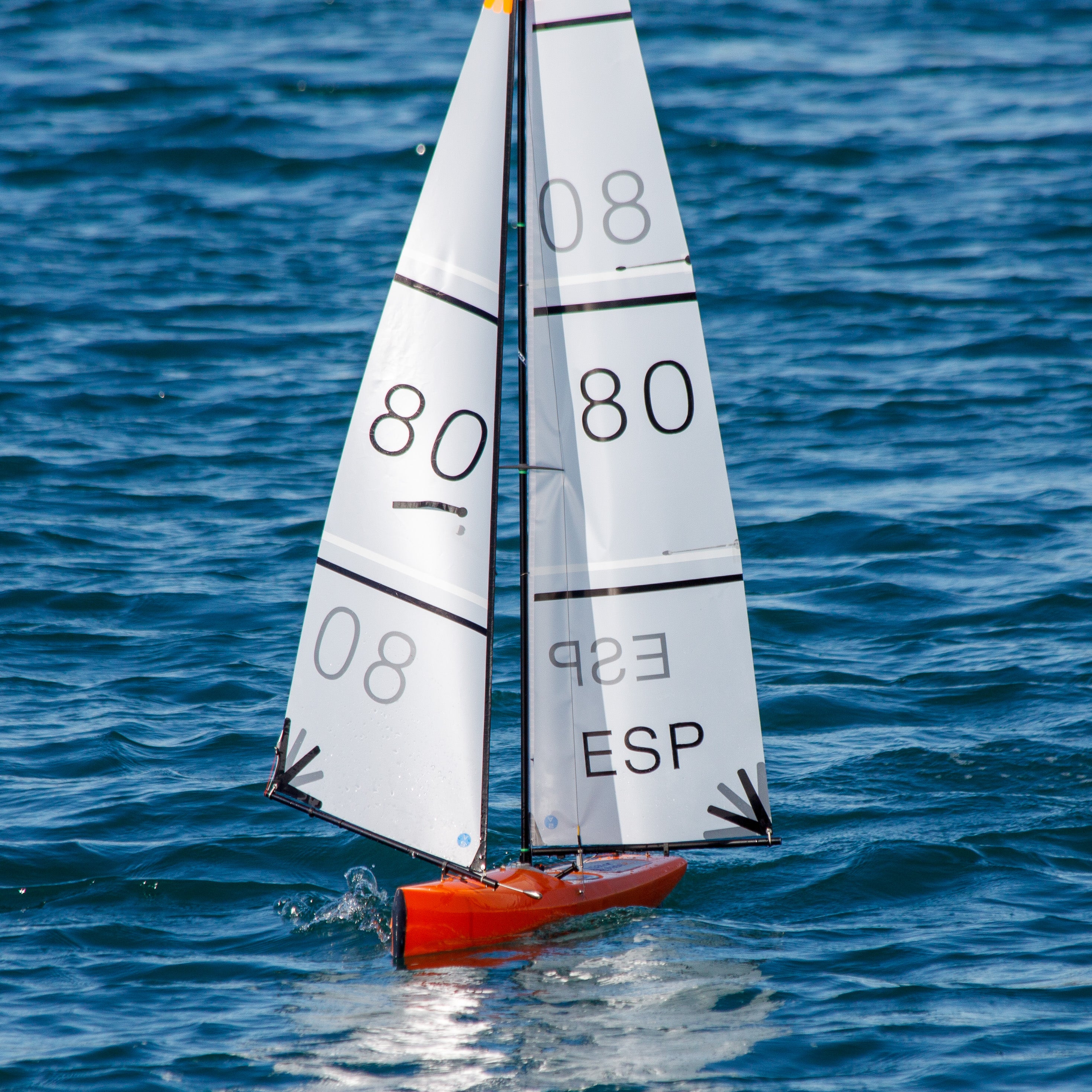

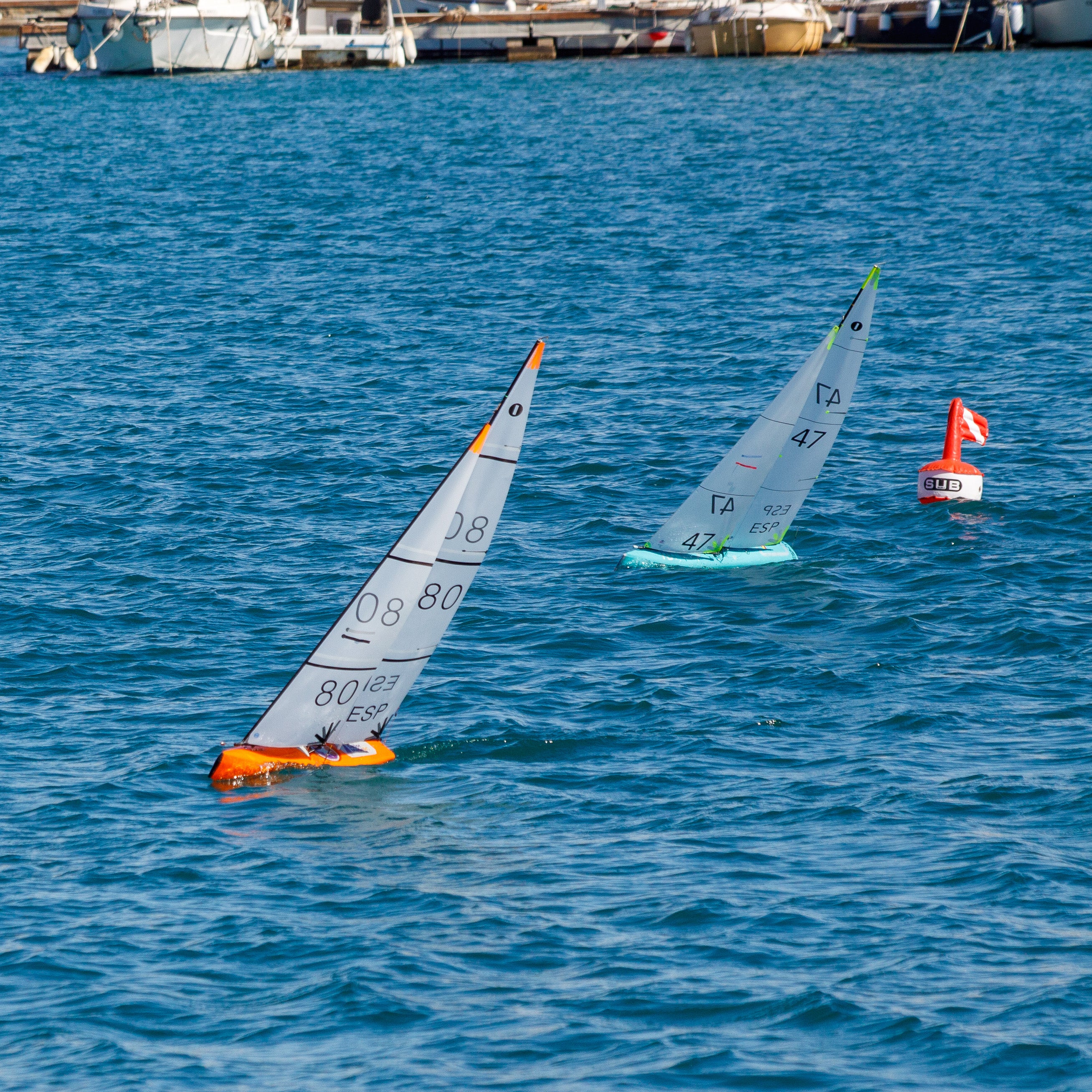

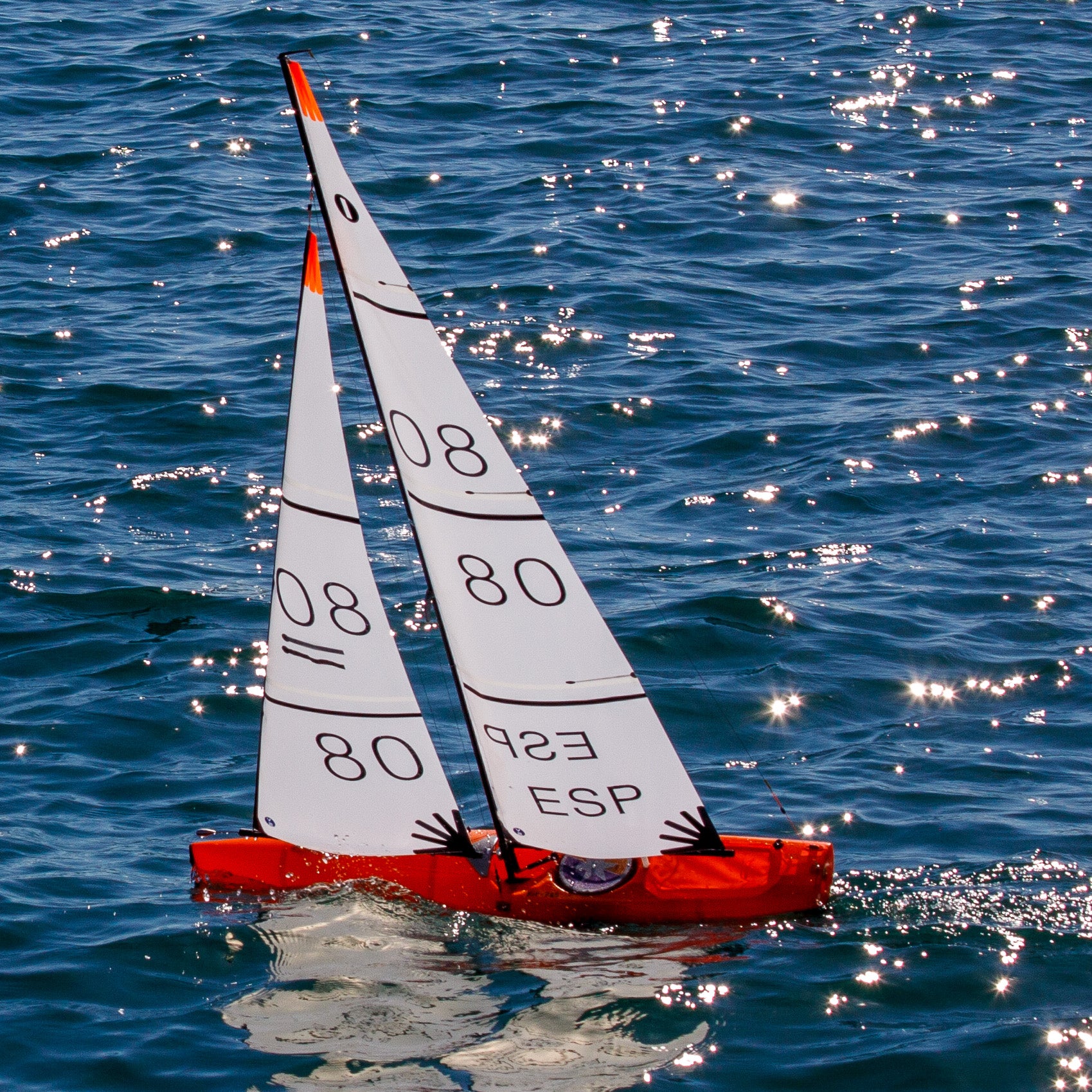

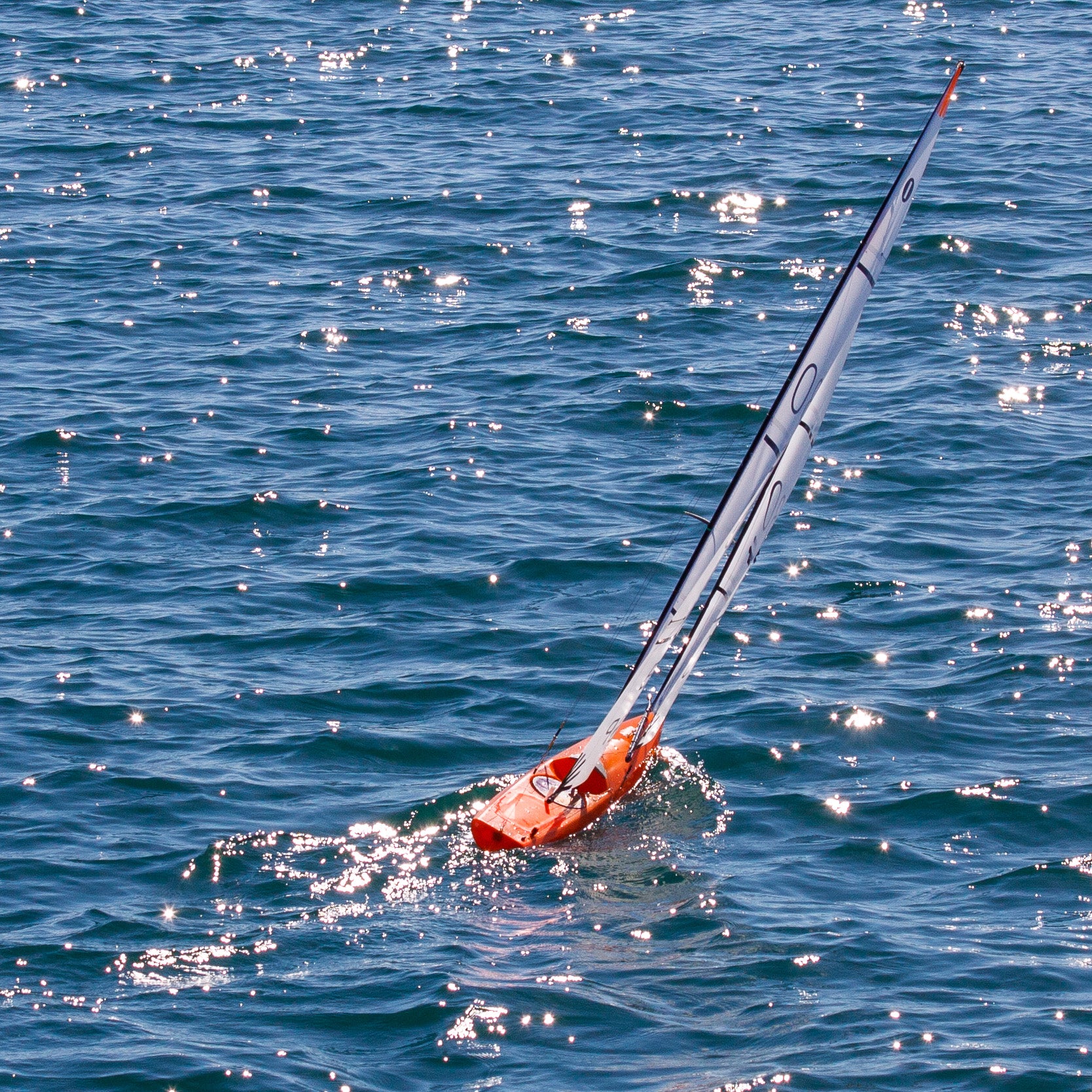

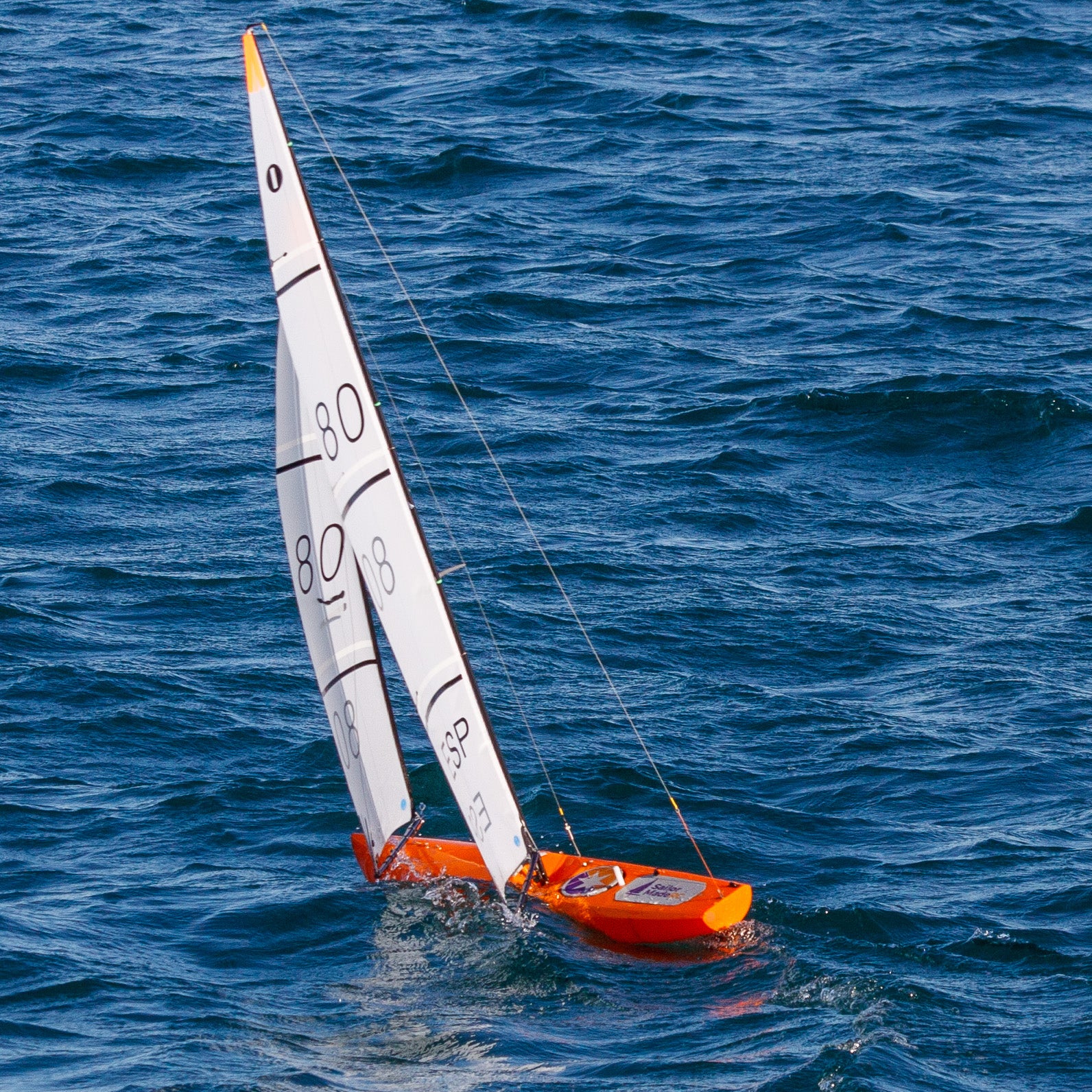

The Alioth is widely recognized as the first truly competitive IOM yacht specifically designed for 3D printing. Designed in Spain and first launched in 2020, the latest V4 version was launched in March 2025. With over 450 boats sailing in over 30 countries, the Alioth is a proven concept. A Spanish National Championship title (2025), European 9th place (2023) and multiple national, regional and world champtionship appearances clearly show the Alioth has proven that self-built boats are viable and can be highly competitive.

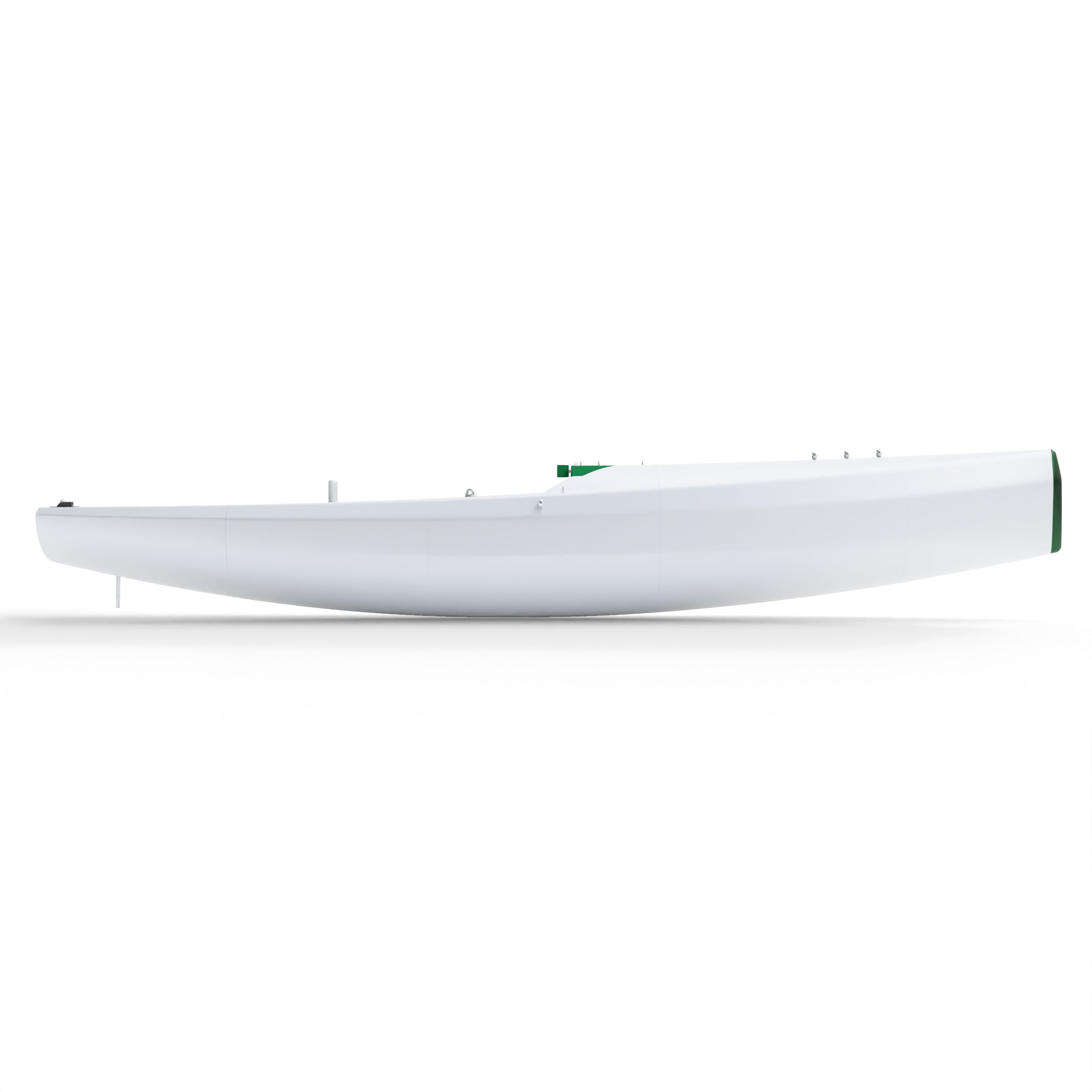

As a pioneer in hull designs for 3D printing, Juan Marcos Egea has created a fast and light hull that is printed in vase mode in a single wall. This unique printing characteristic with no joints gives the hull incredible strength, but limits the ability to incorporate internals into the print. This results in a build that requires more internal components to be assembled, making the Alioth a slightly more complex build than the Proteus, but equally achievable by novice builders.

Our complete build kits and step by step guides make building a competitive boat achievable even to the novice builder. Total build time should be around one week with a few hours per night, or two full weekends. Check out our detailed build guide for more details. You will also find valuable information in the strong Facebook community of Alioth builders and owners.

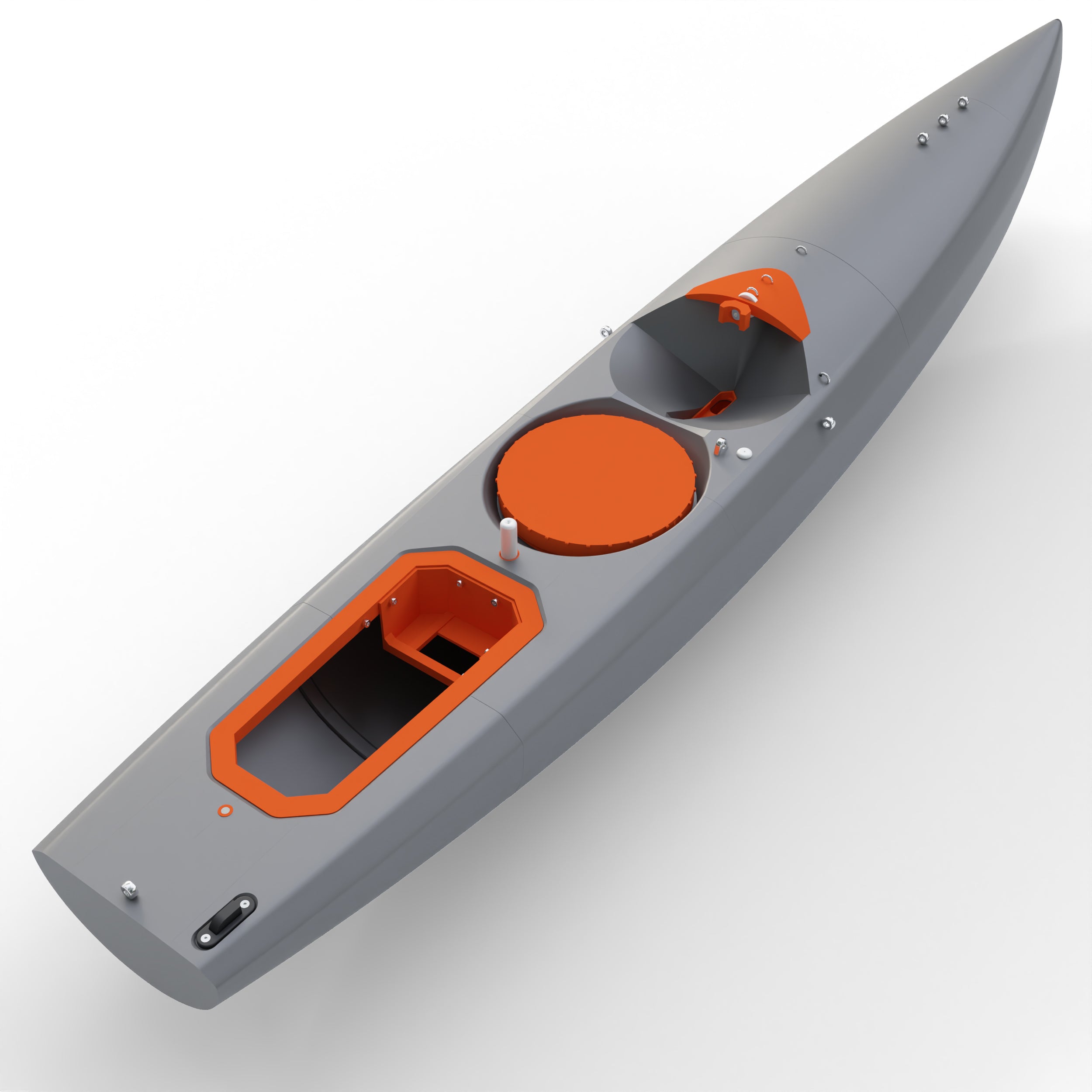

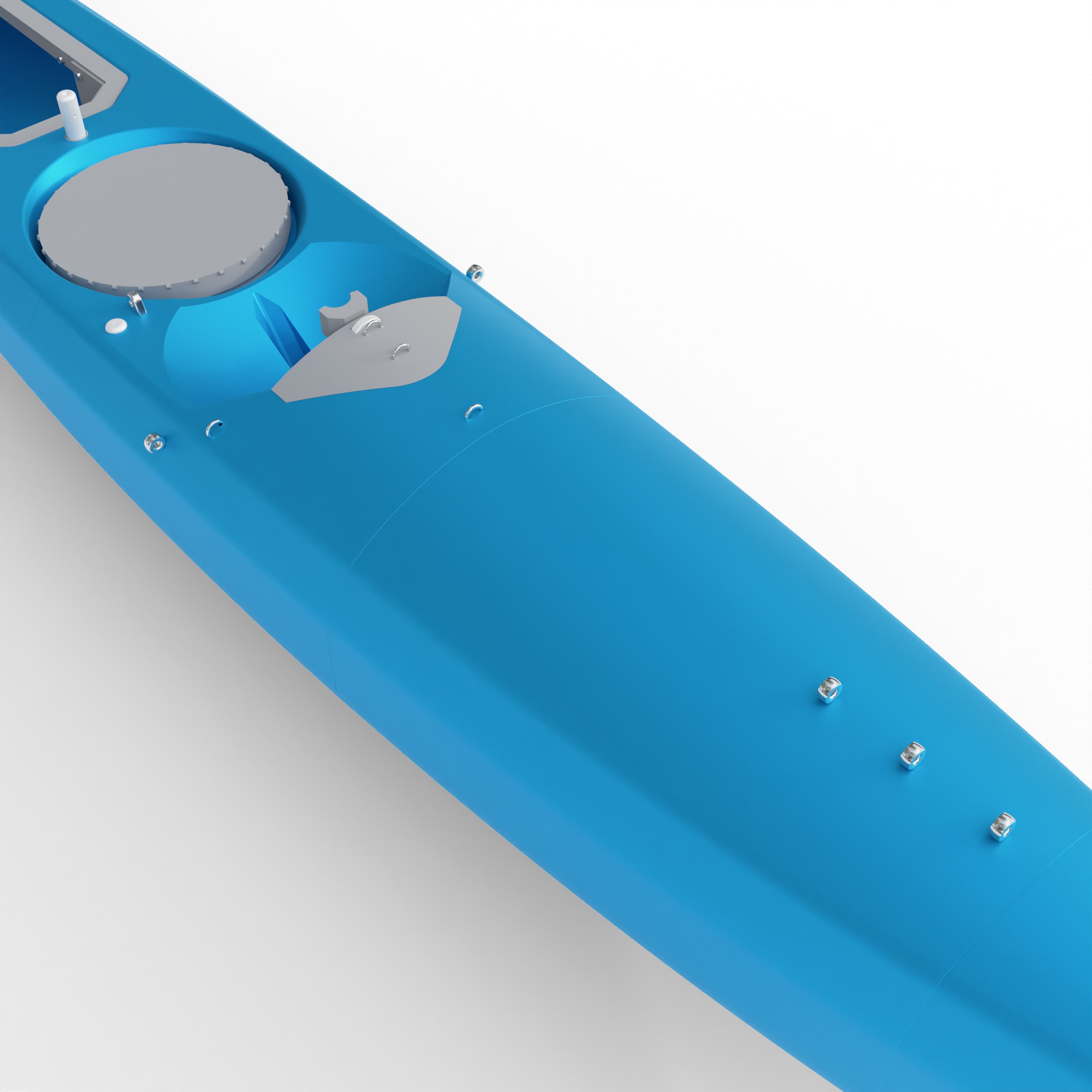

Components of the Full Hull Build Kit - Alioth V4

• Hull
• Hull printed in 5 sections in PLA Tough+ in the colour of your choice
• User license for one Alioth boat
• Access to the licensed user section of the Alioth designer website at rcsailinglab.com

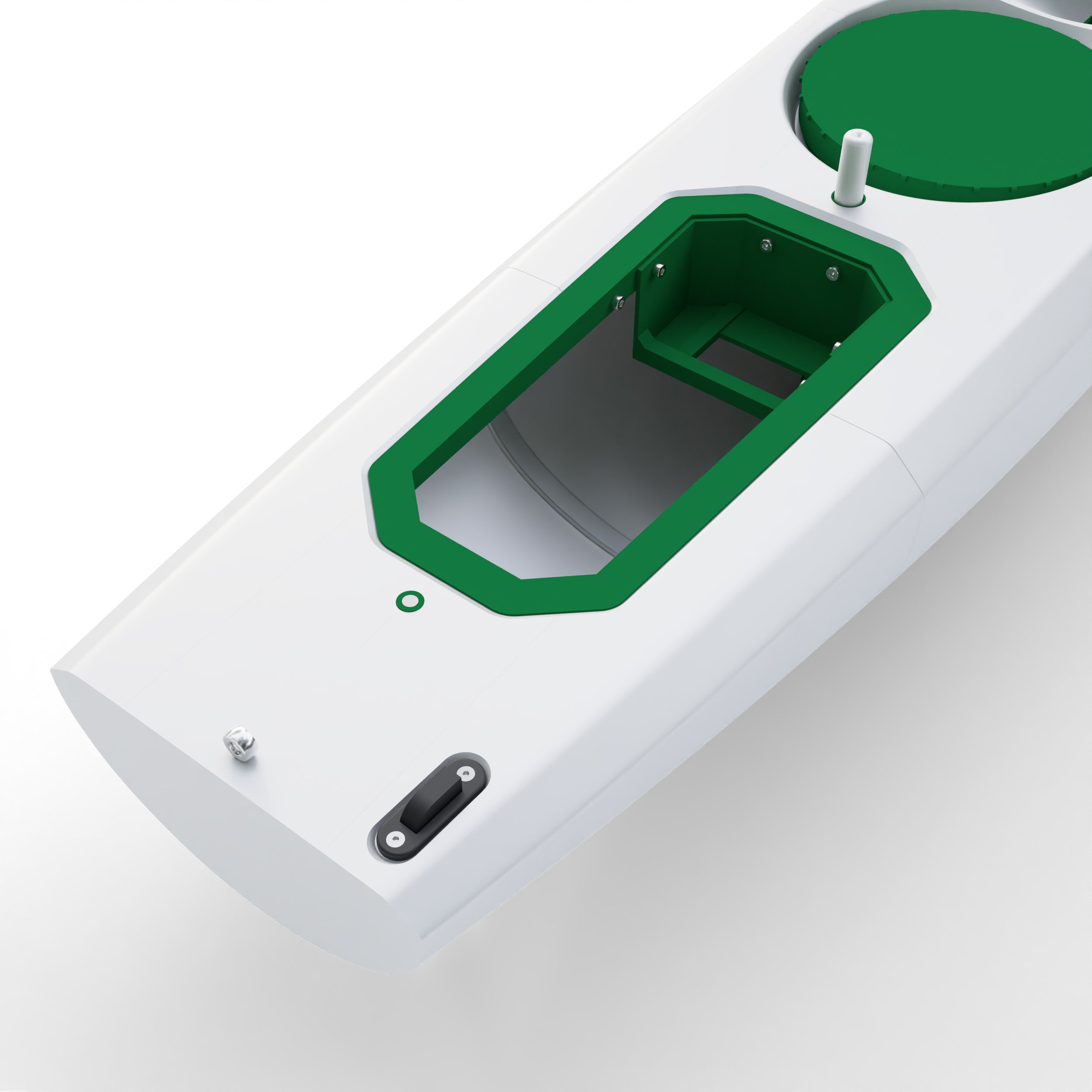

• External printed components in PLA in the colour of your choice
  • Mast ram support
  • Mast ram
  • Fin screw reinforcement
  • Pot lid
  • Aft hatch
  • Rigid aft cover

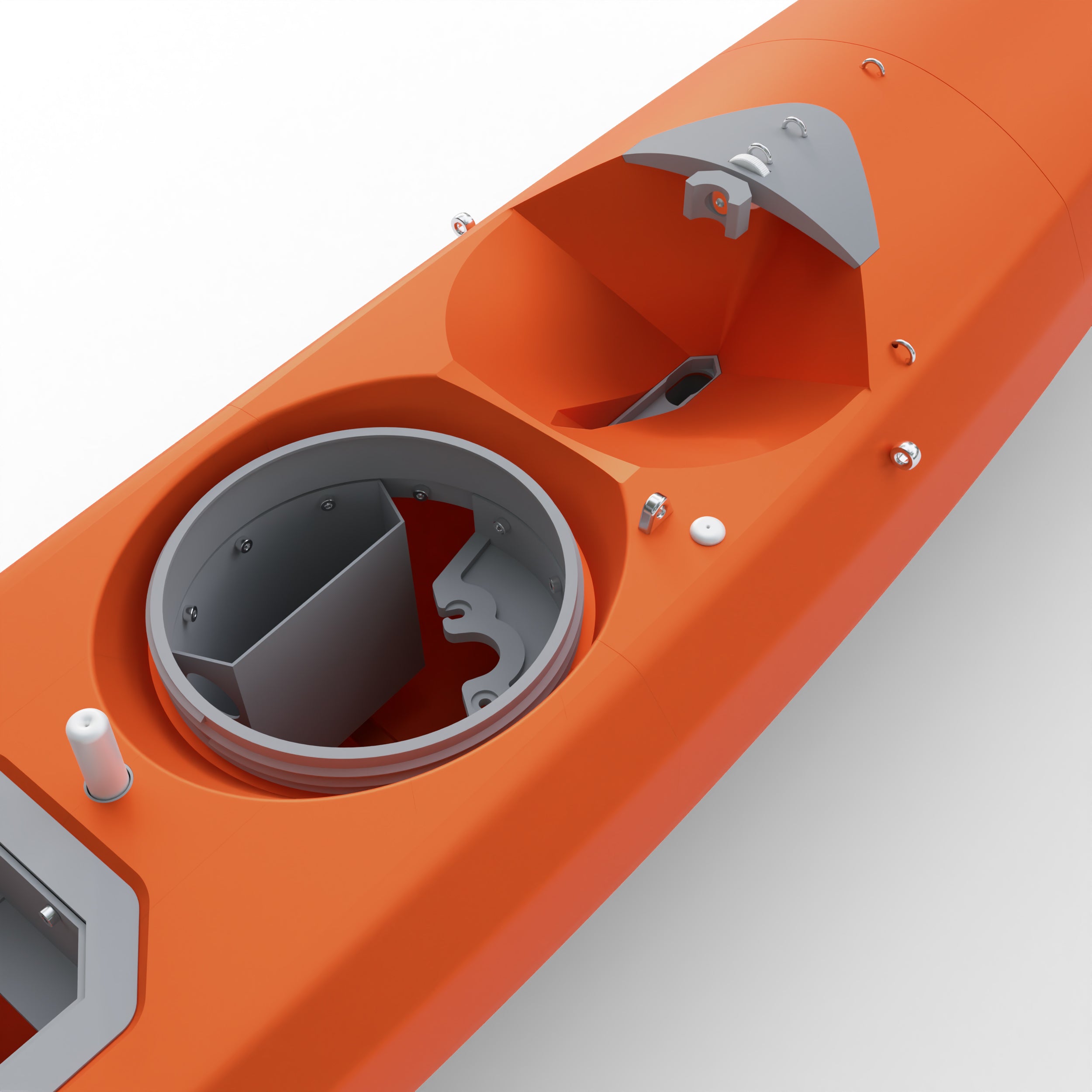

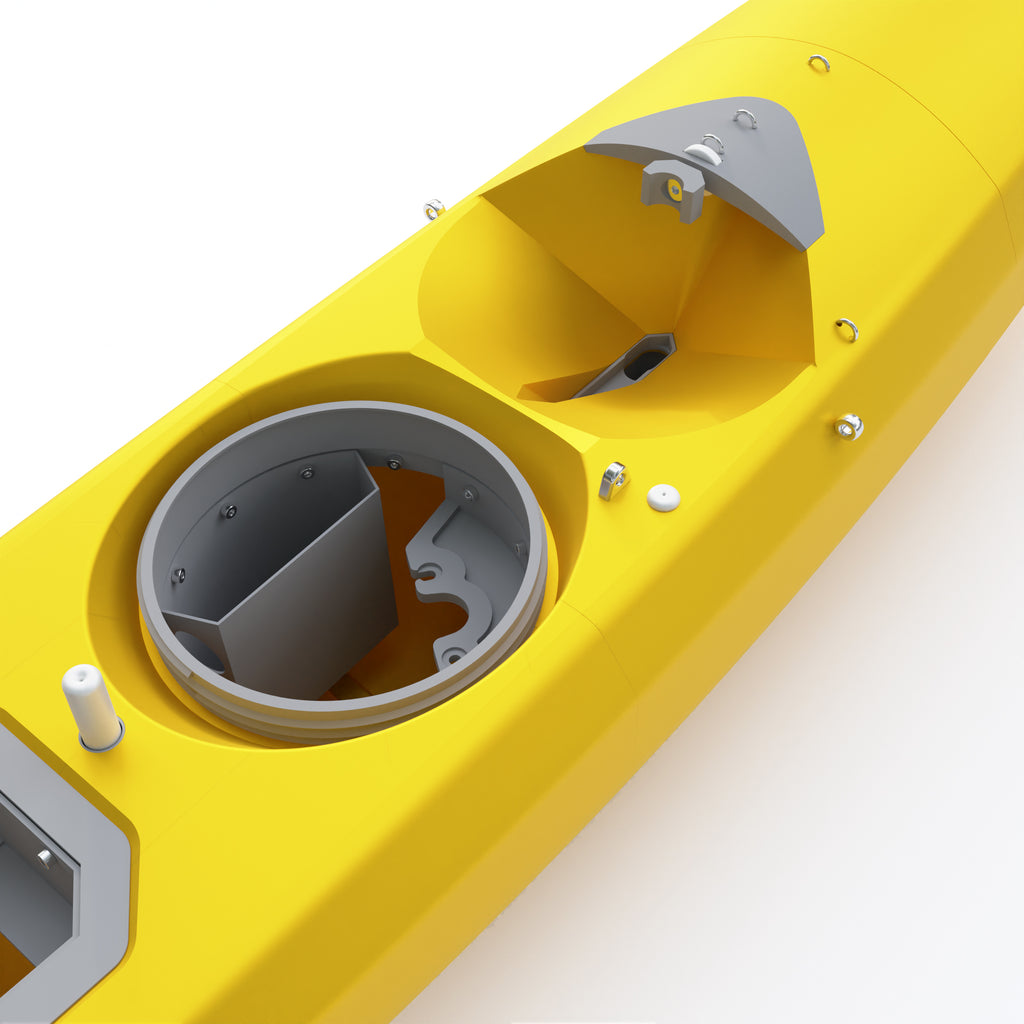

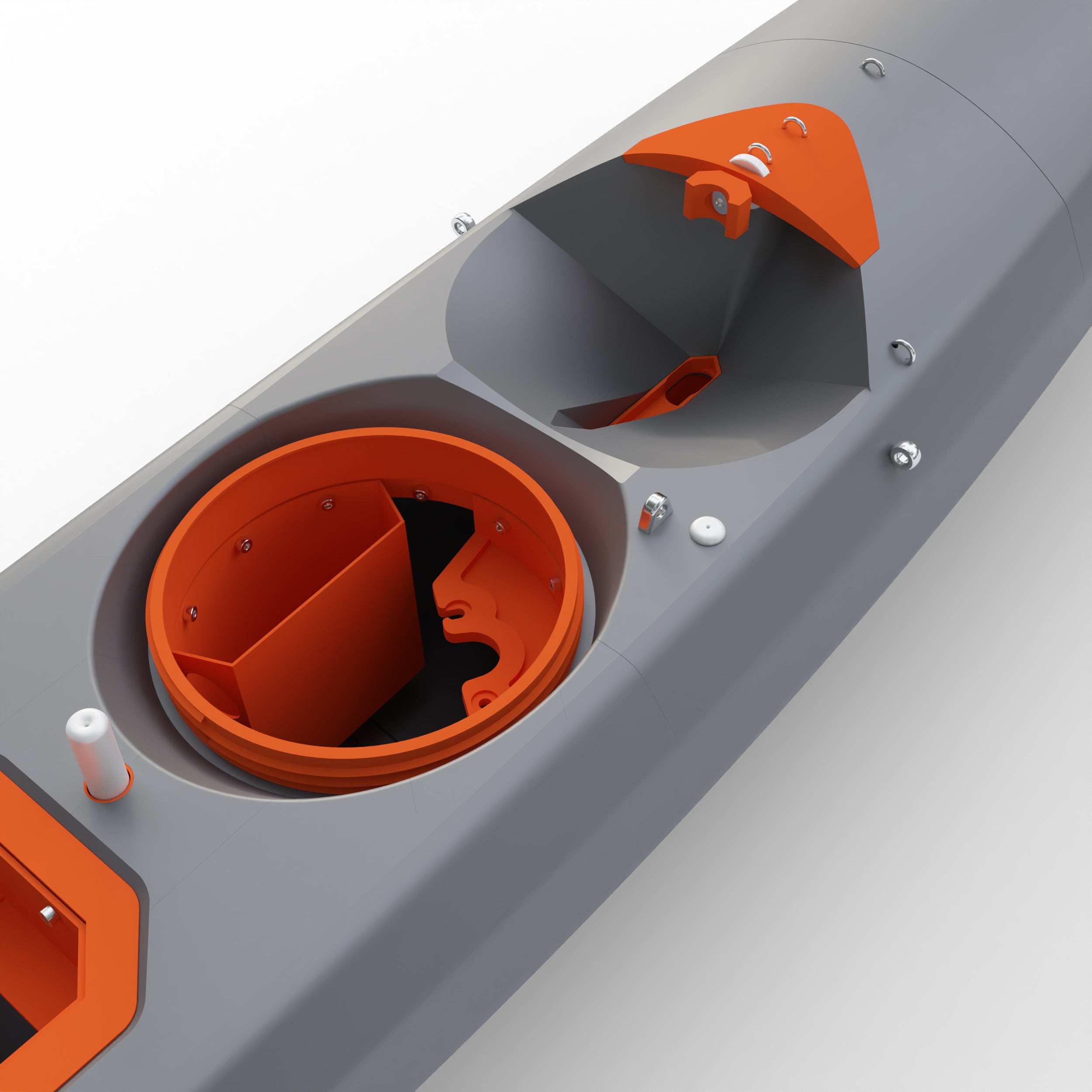

• Internal printed components in PLA in the colour of your choice
  • Jib strut
  • Mast box
  • 2 shroud reinforcements
  • Mainsail post tube
  • Rudder trunking deck support
  • Backstay nut case
  • M3.5 nut case
  • Fairlead support
  • Pot trunk
  • RC hatch
  • Battery housing
  • Rudder servo support for standard size servo
  • Rudder servo support for mini size servo
  • Sailwinch servo tray for RMG, Red Ant or S100-MG
  • Sailwinch servo tray for standard size servo
• Fittings
  • Rudder trunking
  • Rudder shaft 4 mm diameter
  • Mainsheet post (052)
  • Fairlead 6mm (052-006)
  • Through deck block - ball raced (065-SE)
  • 2 Fibreglass rods
  • Wheel nut M4 (026-WHEEL)
  • Countersunk screw M4 x 40mm
  • 1.2mm stainless steel wire for sheet loops
  • 8 Eyebolts M3.5 x 25mm (040-025)
  • Eyebolt M3.5 x 8mm (040-008)
  • 11 M3.5 nuts
  • 16 M2.5 x 8mm screws
  • 16 M2.5 nuts
  • Rudder arm
  • Rudder link M3 x 150mm
  • 2 Rudder link ball joint terminals M3
  • Mast heel fitting
  • Tapered bung
  • Dyneema for running rigging
• Build accessories
  • 2 tubes of HY4070 adhesive
  • 1 tube cyanoacrylate
• Does not include the silicone Bow Bumper, please order separately

Components of the Hull Parts Only - Alioth V4

• Hull
• Hull printed in 5 sections in PLA Tough+ in the colour of your choice
• User license for one Alioth boat
• Access to the licensed user section of the Alioth designer website at rcsailinglab.com
• External printed components in PLA in the colour of your choice
  • Mast ram support
  • Mast ram
  • Fin screw reinforcement
  • Pot lid
  • Aft hatch
  • Rigid aft cover
• Internal printed components in PLA in the colour of your choice
  • Jib strut
  • Mast box
  • 2 shroud reinforcements
  • Mainsail post tube
  • Rudder trunking deck support
  • Backstay nut case
  • M3.5 nut case
  • Fairlead support
  • Pot trunk
  • RC hatch
  • Battery housing
  • Rudder servo support for standard size servo
  • Rudder servo support for mini size servo
  • Sailwinch servo tray for RMG, Red Ant or S100-MG
  • Sailwinch servo tray for standard size servo
• Does not include the silicone Bow Bumper, please order separately

Manufactured under license from RCSailingLab.

When purchasing this product your authorize SailorMadeRC to submit your name, address and email to RCSailingLab to generate the user license and website access credentials.
