Rudder for IOM

High quality competition rudder for IOM boats.

Designed for the Alioth by Juan Marcos Egea using computational fluid dynamics simulations to optimize the hydrodynamic profile. This rudder also fits and performs well on the Proteus and other modern IOM designs.

The rudder is produced in high quality carbon fibre and epoxy by Juan Marco's expert team and finished to perfection. A well balanced rudder that will offer precise control in any condition.

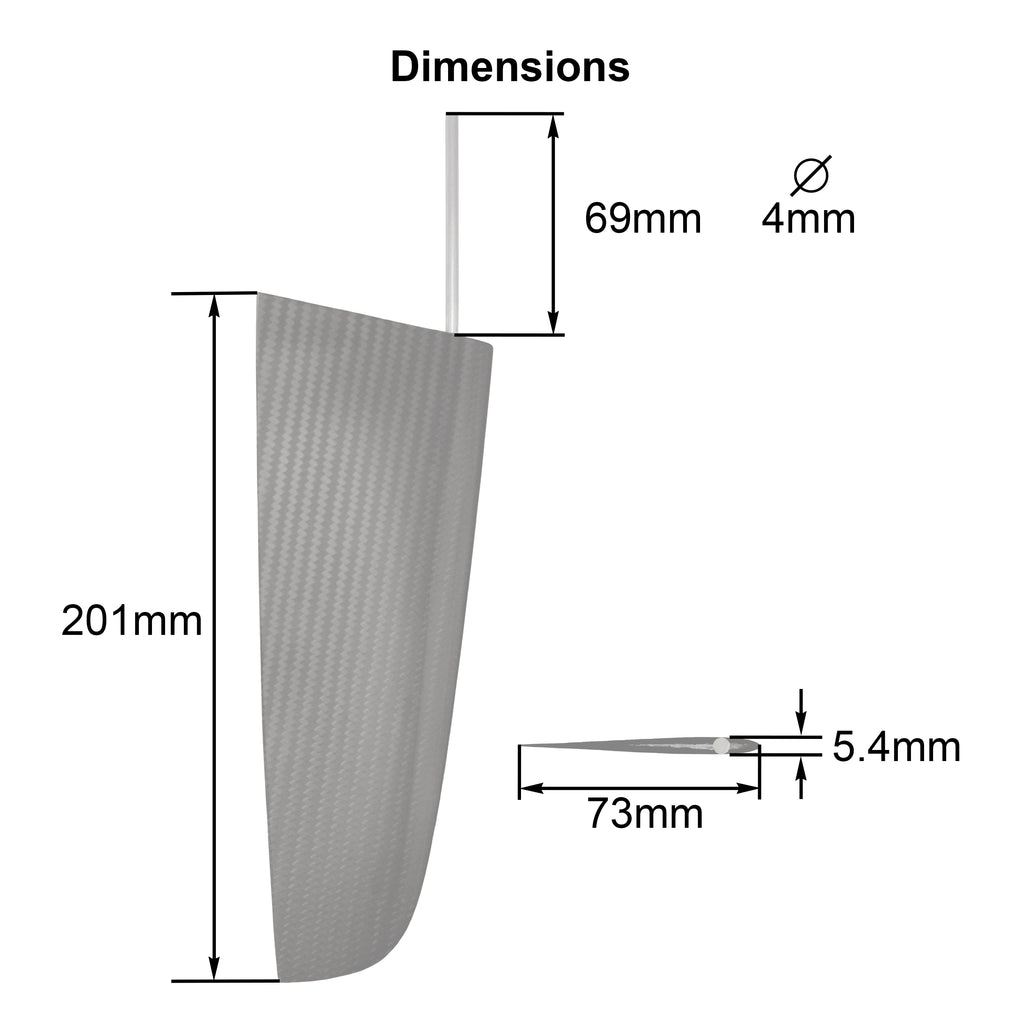

Specifications

• Shaft: Stainless steel 4mm diameter
• Construction: Carbon fibre laminated epoxy over foam core
• Profile thickness (at maximum point): 5.4 mm
• Blade width (chord): 73 mm
• Blade length: 201 mm
• Shaft length: 69 mm
• Overall length: 261 mm
• Weight: 35 g
